:: VIBRATORY TUBS
M.C. Finishing sells Almco, Burr Bench, C&M-Topline, Roto-Finish, and Vibe Tech vibratory tubs and in-line automated tubs.
Vibrator Tub

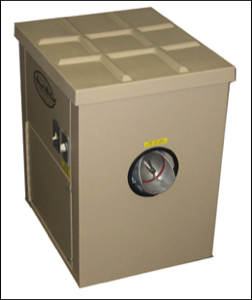

MODEL SVP 5 MAXIMUM CAPACITY

5 Cu. Ft.
Unit: 35-1/14”H x 23”W x 52-1/2”L
Tub: 15-5/8”D x 15-1/4”W x 44-1/2”L
Lining: 5/8” Urethane
Power: 230/460V, 1-1/2HP, 2700
Sound Insulating and sound cover
RPM, 3 Phase Weight: 730 lbs

Shown with optional dividers installed.
High Quality • Portable • Quiet

Shown with optional dividers installed

Stacks Image 3057

SVP 5


800-844-1885 for Pricing




High Quality, Portable Vibrator Tube
MODEL SVP 2.5 MAXIMUM CAPACITY


2-1/2 Cu. Ft. Unit:
35-1/2”H x 22-1/2”Wx27”L
Tub: 15-3/4”D x 15-1/2”W x 19 3/4”L
Lining: 1/2” Urethane
Power: 110V, 1HP, 2700 RPM
Timer: 0-1 Hour or 0-12 Hour (both with hold feature) Sound Insulating and sound cover
Heavy duty locking casters.
Weight: 350 lbs

Shown with top sound cover.
High Quality • Portable • Quiet

Shown with top sound cover
Stacks Image 3059

SVP 2.5


800-844-1885 for Pricing





Stacks Image 3060

BOTH MACHINES ARE AVAILABLE IN SINGLE OR THREE PHASE
BOTH MACHINES
• 5’ round discharge door with discharge trough
• Heavy gauge steel construction coated with rust preventive enamel paint
• Sound reduction cover and anchor bolts
• Polyurethane liner made from the finest quality material available and oven cured
• Complete fluid circulation system including pump, fluid container, all necessary hoses and fittings.
AVAILABLE IN SINGLE OR THREE PHASE
MODEL 300DB AVAILABLE IN SINGLE OR THREE PHASE

MODEL 300DB
• Inside tank dimensions: Length 31” Depth 13”, Width 13-1/2
• Motor: 1HP, Single Phase, 110 Volts, or 220 Volts
• Weight: 400 lbs.
Loading…
Loading…

300DB,3 Cu.Ft.

800-844-1885 for Pricing





Stacks Image 17683
Three Phase, 230 Volts, or 440 Volts
MODEL 600DB AVAILABLE IN SINGLE OR THREE PHASE

• Inside tank dimensions: Length 35” Depth 18-3/4”
• Width 18 Motor: 3HP, Three Phase, 230 Volts, or 440 Volts
• Weigh: 700 lbs.
Loading…
Loading…
Stacks Image 8180

600DB,6.5 Cu.Ft.


800-844-1885 for Pricing




Stacks Image 17361
For more aggressive deburring applications
For more aggressive deburring applications

From wing spars for mammoth aircraft to small parts that can be finished by the thousands in a single load, this uniquely flexible method produces exceptionally fine results - particularly in processing parts with blind or recessed areas. The machine’s variable speed and adjustable eccentric weights can be closely adjusted to vary the vibratory forces to exacting degrees.

Stacks Image 3067
Stacks Image 3068






BATCH VIBRATORY UNITS





Stacks Image 17371
Stacks Image 10756
VibeTech High Quality Large Vibratory Tubs


Premium Efficiency Motor

Premium Poly-Urethan

Easily Adjusted Weights

Increase or Decrease Aggression

Thick Wall Tubing Base Frame
Stacks Image 10714

Model 1760
17” Dia x 60” L


Model 2460
24” Dia x 60” L

800-844-1885 for Pricing



Other Sizes Available From 30” Dia to 60” Dia x Any Length

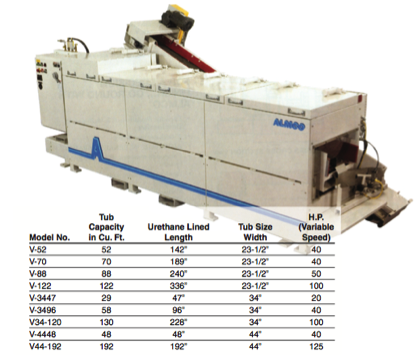

CONTINUOUS VIBRATORY FINISHING
Systems for High Production Precision Deburring and Finishing
Thru-feed machines are integrated with material handling systems including an oscillating parts-media separator, incorporating a secondary “fines” removal deck and a media return conveyor - for complete automatic processing of high production parts. Parts may be fed into the machine at short intervals, direct from preceding operations. Systems are ideally suited for incorporating washer, dryer, or rust- inhibiting operations. These systems are specifically designed for processing parts on a thru-feed basis, requiring process cycles of from 3 to 20 minutes, depending on part size and finishing demands.


Loading…
Loading…
Stacks Image 3065






CONTINUOUS VIBRATORY FINISHING





Stacks Image 17387
Burr Bench Metal Finisher
Burr Bench Metal Finisher: Model 914


Burr Bench Model 914Unit: 31-3/4" high x 20-3/4" wide x 15-3/4" long
Tub: 11-3/4" deep x 13-3/4" wide x 8-5/8" long
3/8" Urethane lining; Volume: 3/4 cu. ft
Power: 110 V, 3/4 Hp, 2700 rpm
Shipping Wt: 130 lbs.
Stacks Image 16259

Model 914

800-844-1885 for Pricing

1.5 Cubic Feet




Stacks Image 17419
Stacks Image 16286
Burr Bench Metal Finisher: Model 2016


Burr Bench Model 2016Unit: 35-1/2" high x 22-1/2" wide x 27" long
Tub: 15-3/4" deep x 15-1/2" wide x 19-3/4" long
1/2" Urethane lining; Volume: 2-1/2 cu. ft
Power: 110 V, 1 Hp, 2700 rpm
Shipping Wt: 350 lbs.
Stacks Image 16290

Model 2016

800-844-1885 for Pricing

2.5 Cubic Feet





Metal Finisher
Burr Bench Metal Finisher: Model 4616


Burr Bench Model 914 Unit: 35-1/4” high x 20" wide x 52-1/2” long
Tub: 15-5/8” deep x 15-1/4” wide x 44-1/2” long
3/8" Urethane lining; Volume 5 cu.ft.
Power: 230/460 1 1/2 Hp, 2700 rpm
Shipping Wt: 750 lbs.
Stacks Image 16321

Model 4616

800-844-1885 for Pricing

5 Cubic Feet
