:: ECONOLINE–SMALL INEXPENSIVE INDUSTRIAL CABINETS

ALL ECONOLINE SYSTEMS INCLUDE

• Foot Valve Blast Controls • Dust Collectors • Quick Change Media Door • Tungsten Carbide Nozzles • Pressure Regulator & Gauge • Excellent Fluorescent Lighting

ALL ECONOLINE SYSTEMS INCLUDE

• Foot Valve Blast Controls • Dust Collectors • Quick Change Media Door • Tungsten Carbide Nozzles • Pressure Regulator & Gauge • Excellent Fluorescent Lighting
Econoline has a trigger operated 12 CFM blast gun, fluorescent lighting and an expanded metal work surface.

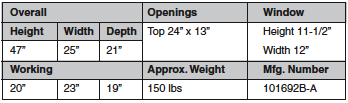

24-0 BUDGET BENCH

The 24-0 Budget Bench from Econoline has a trigger operated 12 CFM blast gun, fluorescent lighting and an expanded metal work surface. Adjustable legs are standard. A ceramic nozzle is also standard. A larger version of the Mini Bench, the Budget, offers an optional free standing, adjustable leg kit.


Stacks Image 1697

Model: 24-0 BUDGET BENCH


$595





Stacks Image 8871
Super features a standard 25 CFM blast, gun with tungsten carbide nozzle and air jet, 100 CFM dust collector and fluorescent lighting

36-1 SUPER

The 36-1 Super features a standard 25 CFM blast, gun with tungsten carbide nozzle and air jet, 100 CFM dust collector and fluorescent lighting.This is Econoline’s most popular model and includes side door access as well as easy to use flipper door on the front. Many optional features add versatility to the midsized cabinet, but a popular choice is a media reclaim system.

Stacks Image 1699

Model: 36-1 SUPER


$1,275





Stacks Image 9071
Super is a complete blasting solution with muscle. Options include airline filter, carbon screen, rubber cotton lined gloves, dust blow off gun

48-2 SUPER

Two side doors allow endless placement options in this foot operated blasting unit. Featureing a 100 CFM dust collector, 25 CFM foot pedal gun, fluorescent lighting and cloth lined work gloves; the 48-2 Super is a complete blasting solution with muscle. Options include airline filter, carbon screen, rubber cotton lined gloves, dust blow off gun, 12 CFM blast gun, boron carbide nozzle, tumble basket and turntable.



Stacks Image 1701

48-2 SUPER


$1,475





Stacks Image 9079
clam shell design allows for easy loading and unloading. An excellent choice for midsized flip top machine

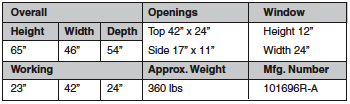

42 X 24 SUPER FT

A clam shell design allows for easy loading and unloading. An excellent choice for midsized flip top machine. The 42 x 24 Super FT blast, cabinet also includes a backrest assembly, 100 CFM dust collector, fluorescent lighting, 25 CFM foot pedal operated blast gun and a hopper door that makes media changes simple. Optional features include airline filter, carbon screen, dust blow off gun, 12 CFM blast gun, boron carbide nozzle, tumble basket and turntable.


Stacks Image 1703

Model: BG272


$1,690





Stacks Image 9087
:: ECONOLINE–LARGE INEXPENSIVE INDUSTRIAL CABINETS

ALL ECONOLINE SYSTEMS INCLUDE

• Foot Valve Blast Controls • Dust Collectors • Quick Change Media Door • Tungsten Carbide Nozzles • Pressure Regulator & Gauge • Excellent Fluorescent Lighting
This versatile blasting cabinet features a large side opening that allows for options such as the turntable, track and vertical door

48 x 36 RH Vert DR

The 24-0 This versatile blasting cabinet features a large side opening that allows for options such as the turntable, track and vertical door shown. Standard features include a 100 CFM dust collector, fluorescent lighting, cloth lined work gloves and a 25 CFM foot-operated blast gun. Other optional features include an airline filter, carbon screen, dust blow off gun, 45 CFM gun, boron carbide nozzle, tumble basket, 400 or 600 CFM dust collector, and a reclaim system. Also available as Mfg. Number 101771S-RH in a horizontal door configuration. Turntable and track are also optional in the horizontal door model.


Stacks Image 1705

Model:
48 x 36 RH


$3,250



Model:
48 x 36 Standard Swing Door


$2,560





This blasting cabinet opens wide to 48” x 48” and provides 40” of operating height for your most bulky projects.

48 x 48 CB

This blasting cabinet opens wide to 48” x 48” and provides 40” of operating height for your most bulky projects. A 25 CFM foot-operated blast gun, 100 CFM dust collector (not shown), and tungsten carbide nozzle and air jet are standard. Optional features include airline filter, carbon screen, rubber cotton-lined gloves, dust blow off gun, 45 CFM blast gun, boron carbide nozzle, tumble basket, turntable, 400 or 600 CFM dust collector and reclaim system.

Stacks Image 1707

Model:
48 x 48 CB


$2,700





Clam shell and side-access features make loading and unloading this roomy machine a snap

60 x 30 FT Double Station

Clam shell and side-access features make loading and unloading this roomy machine a snap. Lower hopper door allows for simple media changes and cloth lined gloves allows the operator to work in comfort and safety. Standard fluorescent lighting, 25 CFM foot pedal blast gun with tungsten carbide nozzle and air jet, and 150 CFM dust collector (not shown) provide excellent visibility. Optional features include airline filter, carbon screen, double gun system, 45 CFM gun, boron carbide nozzle, tumble basket, turntable, 400 or 600 CFM dust collector, reclaim system and dust blow off gun.





Stacks Image 1709

Model: 60 x 30 FT Double Station


$2,850





With 60” of working width and 48” of working depth, the 60 x 48 CB is a 25 CFM foot-operated blast cabinet that is as large as it is powerful

60 x 48 CB


With 60” of working width and 48” of working depth, the 60 x 48 CB is a 25 CFM foot-operated blast cabinet that is as large as it is powerful. Comes with a 400 CFM dust collector (not shown) and tungsten carbide nozzle and air jet that provides you with a spacious solution that fits in most shop environments. Optional equipment includes carbon screen, turntable, 45 CFM gun, tumble basket, 150 or 600 CFM dust collector and reclaim system.


Stacks Image 1711

Model:
60 x 48 CB


$4,225





:: ECONOLINE–DIRECT PRESSURE INDUSTRIAL CABINETS

ALL ECONOLINE SYSTEMS INCLUDE

• Foot Valve Blast Controls • Dust Collectors • Quick Change Media Door • Tungsten Carbide Nozzles • Pressure Regulator & Gauge • Excellent Fluorescent Lighting
Econoline’s WD 40 x 38 blast cabinet features a raised steel work platform for the operator and a large window for easy project viewing.

WD 40 x 38

Econoline’s WD 40 x 38 blast cabinet features a raised steel work platform for the operator and a large window for easy project viewing. Oval armports hold standard rubber cotton-lined work gloves. Other standard features include regulator and gauge, fluorescent lighting, a 14 and 11 gauge welded steel cabinet, tungsten carbide nozzle, moisture filter, media regulator, 1/2” internal diameter abrasive hose, foot pedal operation, 400 CFM dust collector and 10-120 PSI ASME code pressure pot with a media capacity of 1 cubic foot.


Stacks Image 1713

Model:
WD 40 x 38


$5,125


A state-of-the-art pressure pot dry blast system designed for the high volume shop seeking excellent control for blasting applications

DP 36-1

A state-of-the-art pressure pot dry blast system designed for the high volume shop seeking excellent control for blasting applications. Featuring a side mounted pressure pot for easy operation, holds up to 110 pounds of blasting media for long, uninterrupted blasting. Wide front and side doors allow for quick and easy placement and removal of objects. A convenient pressure control gauge and foot-operated 25 CFM tungsten carbide blast nozzle reduce fatigue for the operator ready to get the job done. Unit includes a 100 CFM dust collector.



Stacks Image 1715

Model:
DP 36-1


$2,105





Other standard features include oval armports, foot pedal operation and a tungsten carbide nozzle.

WD 36 x 30

The WD 36 x 30 blast cabinet from Econoline has a standard 400 CFM dust collector and ASME code pressure vessel. Other standard features include oval armports, foot pedal operation and a tungsten
carbide nozzle.







Stacks Image 1717

Model:
WD 36 x 30


$4,533





:: ACCESSORIES

The Gun Mounting Bracket Bracket provides that ‘extra hand’ users need to hold projects, leaving both hands of the operator free to maneuver the work

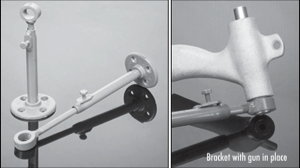

Gun Mounting Bracket

The Gun Mounting Bracket provides that ‘extra hand’ users need to hold projects, leaving both hands of the operator free to maneuver the work. Gun Mounting Brackets can be mounted on the wall or ceiling inside any Econoline blast cabinet. Blast Gun can be easily put in or removed from the bracket. Telescopic functionality is designed to provide easy length adjustment, from 7 3/4” to 12 3/4”, with rotation of 360 degrees.
Stacks Image 1719
Stacks Image 1720

Wheel Roller

Stacks Image 1721
Install an Econoline Wheel Roller to easily rotate wheel rims inside your blast cabinet
Install an Econoline Wheel Roller to easily rotate wheel rims inside your blast cabinet, just set the Wheel Roller on the work surface inside the blast cabinet and place the rim on rollers. Rotate rim as you blast to access all surfaces easily. Powder-coated 14-gauge steel fabrication with ball bearings provides a durable finish for this handy accessory.

26” & 20” Turntables

Stacks Image 1723
The hub contains sealed ball bearings, ensuring that all lubrication points are protected.
Econoline turntables are designed for use in the abrasive atmosphere of a blast cabinet. The 26” model is ideal for larger blast cabinet sizes. The hub contains sealed ball bearings, ensuring that all lubrication points are protected. The table plate is constructed of 7 gauge hot rolled steel with a weight capacity of 2000 lbs. Econoline can also recess and install a turntable in any cabinet that you have ordered. Please contact customer service for installation cost and lead time. Machines with power driven turntables are also available and can be quoted on request. 20” turntable not shown.
Stacks Image 1725

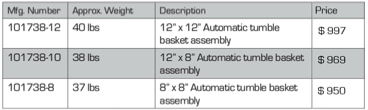

Automatic Tumble System

Stacks Image 1726
Small Parts basket
Stacks Image 1728
Stacks Image 1729

Small Parts Basket

Stacks Image 1730
Stacks Image 1731

Parts Baskets

Stacks Image 1732

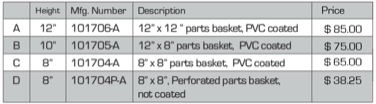

12" and 8" Baskets
Stacks Image 1734
